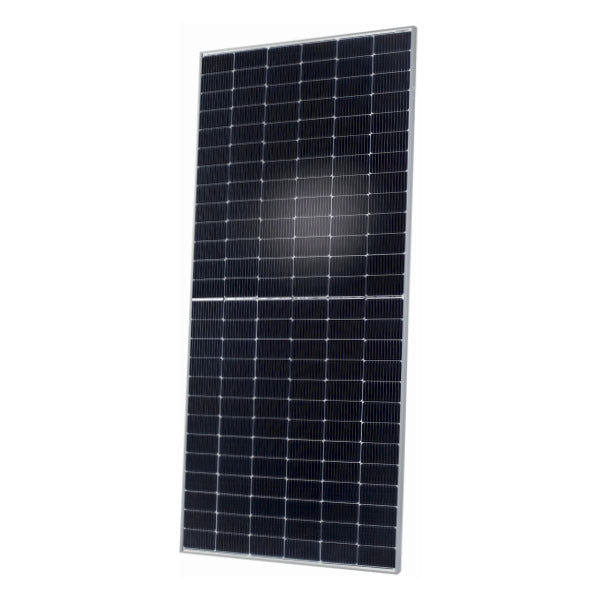

Qcells 635W 156 Half-Cell 1500V Silver Bifacial Solar Panel – 156 Half-Cell, 1500V, Bifacial – Q.TRON XL-G2.3/BFG 635 – Power Amplified

The Qcells 635W 156 Half‑Cell 1500V Silver Bifacial Solar Panel is a high‑efficiency bifacial module featuring 156 monocrystalline Q.ANTUM NEO half cells, a 1500 V maximum system voltage, and a 22.7 % module efficiency. It delivers optimal yields in all weather, with enhanced low‑light performance and a 21 % bifacial gain, making it ideal for ground‑mounted installations.

Features

• 156 Half‑Cell Design: 6 × 26 monocrystalline Q.ANTUM NEO half cells for high efficiency
• 1500 V Max System Voltage: VSYS 1500 V for large‑scale projects
• 22.7 % Module Efficiency: maximum efficiency at STC
• Bifacial Energy Yield Gain: up to 21 % LCOE improvement with 80 % ± 5 % bifaciality
• 12‑Year Product Warranty: extended product protection
• 30‑Year Performance Warranty: long‑term performance guarantee
• Anti‑LeTID & Anti‑PID Technology: secure long‑term yield
• Double Glass Design: 0.08 in thermally pre‑stressed front glass, 0.08 in semi‑tempered back glass
• High Mechanical Strength: certified for 5400 Pa snow and 2400 Pa wind loads
• IP67 Junction Box with Bypass Diodes: protection class IP67, 30 A series fuse rating
• Stäubli MC4‑Evo2 Connector: IP68 waterproof, robust connection
• Drainage Holes: 0.12 × 0.24 in ensures water drainage
• Lightweight: 77.8 lbs (35.4 kg) for efficient installation
• Versatile Mounting: 4 ground slots, 8 tracker slots, 4 grounding holes

Specifications

• Power (PMPP): 635 W
• Efficiency: ≥ 22.7 %
• Bifaciality: 80 % ± 5 %
• VSYS: 1500 V
• Max Series Fuse: 30 A DC
• Fire Rating: Type 294, ANSI/UL 61730
• Max Design Load: 75 lbs/ft² (3600 Pa) / 33 lbs/ft² (1600 Pa)
• Permitted Temperature: –40 °F to +185 °F (–40 °C to +85 °C)
• Max Test Load: 113 lbs/ft² (5400 Pa) / 50 lbs/ft² (2400 Pa)
• Warranty: 12 years product, 30 years performance
• Dimensions: 96.9 in × 44.6 in × 1.38 in (2462 mm × 1134 mm × 35 mm)
• Weight: 77.8 lbs (35.4 kg)
• Electrical: Voc 57.74 V, Isc 15.44 A, Vmp 48.08 V, Imp 14.62 A, Temp Coefs α + 0.04 %/K, β – 0.24 %/K, γ – 0.30 %/K

The Qcells 635W 156 Half‑Cell 1500V Silver Bifacial Solar Panel delivers unmatched efficiency and durability for any solar project.
